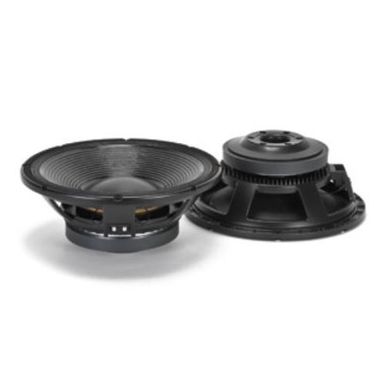

Rcf LF15X401 15" Woofer 1500 W 4" Vc

Model:
LF15X401
Brand:
RCF
In Stock Get it today & own it in 12 months or less.
* The advertised Lease is a rental-purchase agreement for new merchandise. Unless you exercise your Early Purchase Option, to acquire the merchandise you must make 52 weekly payments of $17.00 (plus tax & delivery), for a $884.00 (plus tax & delivery) Total Cost/Total of Payments. This includes a $399.52 Cash Price3 and a $484.48 Cost of Rental.

Overview

* The LF15X401 is ideal for use in applications where sizable amounts of low frequency, long excursion and low distortion acoustic power is desired* The robust mechanical design and optimised weight of the device make it desirable for use in fixed installation or touring professional loudspeaker systems.* The transducer's low frequency extension, coupled with its extremely low generation of harmonic distortion, also makes it ideal for use within critical listening applications such as studio monitoring subwoofer systems. 34 1500* Part Number 11100090* 4-inch, fiberglass inside/outside copper voice coil* 3000W continuous program power handling* 96.5 dB Sensitivity* 30 Hz – 1.5 kHz Frequency range* Dual Forced Hyperventing System* Dual spider design with silicon based dampening control* Triple-roll surround and corrugated straight cone geometry* Nominal Diameter: 380 / 15 mm/inch* Rated Impedance: 8 Ohms * Program Power: 3000 W AES* Power handling capacity: 1500 W AES*... * The LF15X401 is ideal for use in applications where sizable amounts of low frequency, long excursion and low distortion acoustic power is desired
* The robust mechanical design and optimised weight of the device make it desirable for use in fixed installation or touring professional loudspeaker systems.
* The transducer's low frequency extension, coupled with its extremely low generation of harmonic distortion, also makes it ideal for use within critical listening applications such as studio monitoring subwoofer systems. 34 1500
* Part Number 11100090
* 4-inch, fiberglass inside/outside copper voice coil
* 3000W continuous program power handling
* 96.5 dB Sensitivity
* 30 Hz – 1.5 kHz Frequency range
* Dual Forced Hyperventing System
* Dual spider design with silicon based dampening control
* Triple-roll surround and corrugated straight cone geometry
* Nominal Diameter: 380 / 15 mm/inch
* Rated Impedance: 8 Ohms
* Program Power: 3000 W AES
* Power handling capacity: 1500 W AES
* Sensitivity: 96.5 dB
* Frequency Range: 30 Hz to 1500 Hz
* Effective Piston Diameter: 340/13.4 mm/inch
* Max Excursion Before Damage (peak to peak): 50 / 1.97 mm/inch
* Minimum Impedance: 6.3 Ohms
* Voice Coil Diameter: 100 / 4 mm/inch
* Voice Coil Material: Copper
* Voice Coil Winding Depth: 30 / 1.18 mm/inch
* Number of layers: 2
* Kind of layer: inside / outside
* Top Plate Thickness: 15 / 0.6 mm/inch
* Cone Material: No pressed pulp
* Cone Design: Straight
* Surround Material: Polycotton
* Surround Design: Triple roll
Thiele/Small Parameters
* Resonance frequency: 34 Hz
* DC resistance: 5.5 Ohms
* Mechanical factor: 7.6
* Electrical factor: 0.30
* Total factor: 0.29
* BL Factor: 26.5 T · m
* Effective Moving Mass: 170 g
* Equivalent Cas air load: 146 liters
* Effettive piston area: 0.091 m²
* Max. linear excursion (mathematical): 11.5 mm
* Voice - coil inductance @ 1kHz: 2,5 mH
* Half-space efficiency: 1.90%
Mounting information
* Overall Diameter: 393 / 15.5 mm/inch
* Bolt Circle Diameter: 371-376 / 14.6-14.8 mm/inch
* Bolt Hole Diameter: 6.5 / 0.3 mm/inch
* Front Mount Baffle Cut-out: 354 / 13.9 mm/inch
* Rear Mount Baffle Cut-out: 354 / 13.9 mm/inch
* Depth: 145 / 5.7 mm/inch
* Volume occupied by the driver: 4.3 / 0.15 liters/ft³
* Net Weight: 12.6 / 27.7 kg/lbs
Shipping information
* Shipping weight: 13.6 / 29.9 kg/lbs
